1. The selected square bolt might be too long. Refer to the installation guide and choose the correct size based on your door's thickness. 2. The internal mounting plate must be positioned using the provided installation jig before tightening the M5 screws. 3. The M5 screw holding the lock cylinder might be over-tightened. Loosen it half a turn with a screwdriver.

The locking/unlocking trigger angle is 45°. The maximum opening angle is ≤ 59°.

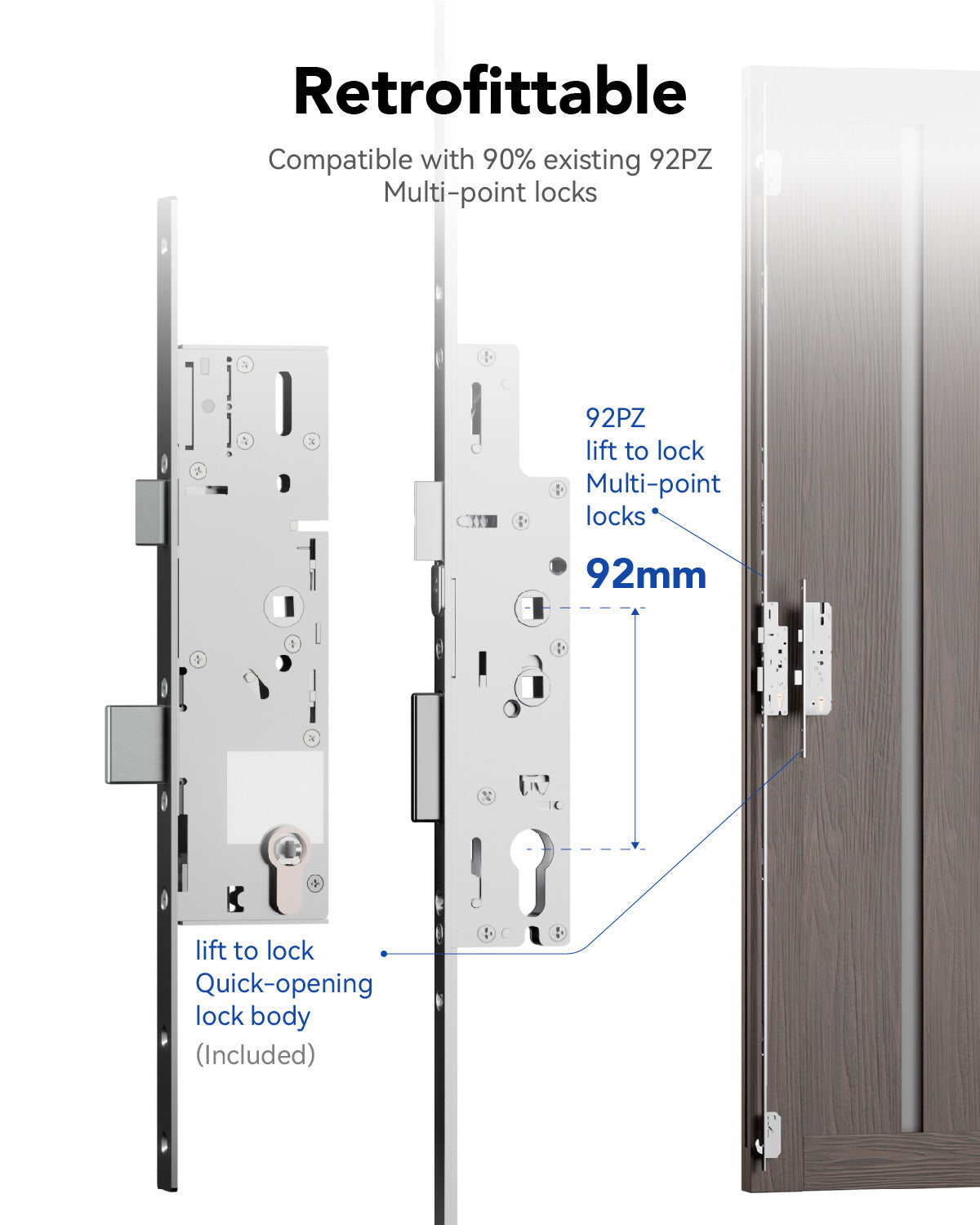

BS locks are suitable for most doors on the market (including composite, uPVC, and wooden doors) with a thickness between 44mm and 70mm. Simply remove the original mechanical lock and replace it with the BS lock. Installation is straightforward and can be done yourself using the provided instructions. If you are unsure about compatibility, consult your dealer.

The lock will give a low-battery warning; please replace all batteries as soon as possible. If the batteries are completely dead, there is a 9V battery emergency socket on the bottom of the external lock panel for temporary power to open the door. Replace the internal batteries immediately afterwards.

When a new firmware version is available, you will receive an alert when operating the lock via the app. If you agree to upgrade, you can update the lock's firmware via Bluetooth.

You need to touch the lock's wake-up area first before using the IC card to unlock.

Administrator permissions are tied to the user account. Logging into your administrator account on a new phone will automatically show the bound lock. If you need to clear the lock data from the old phone, you will need to manually clear the user data.

Cards can be added by pressing the setup button or via the App. However, deletion must be done through the App.

Place the card on the card reading area (where the logo is). If it still doesn't work, it is recommended to replace the card.

No. The lock uses encrypted cards. You must purchase special key cards from BS or an authorized BS dealer

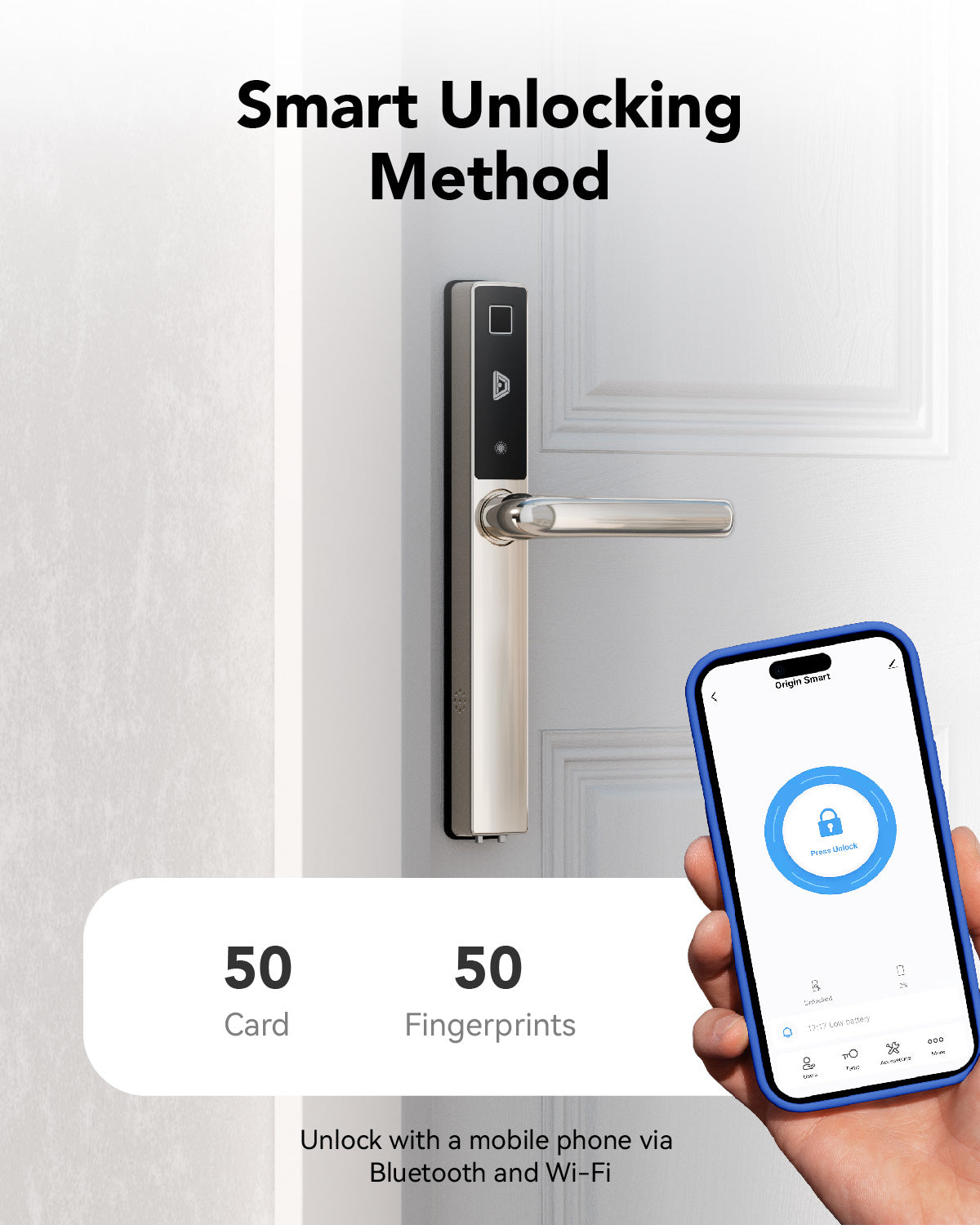

50 cards.

If installed correctly, you should press down the handle immediately after verification to open the door. If it still doesn't open, please contact your dealer or the manufacturer.

Serious injuries may prevent recognition. It is recommended to register multiple fingerprints for different fingers during initial setup.

No. The lock uses live fingerprint detection technology, so even a copied fingerprint cannot unlock it.

Fingerprints can be added by pressing the setup button or via the App. However, deletion must be done through the App.

1. Clean your finger and the fingerprint sensor. 2. Ensure your finger is placed correctly on the sensor and try multiple times. 3. It is recommended to register the same fingerprint at different angles or register multiple fingerprints for different fingers during setup.

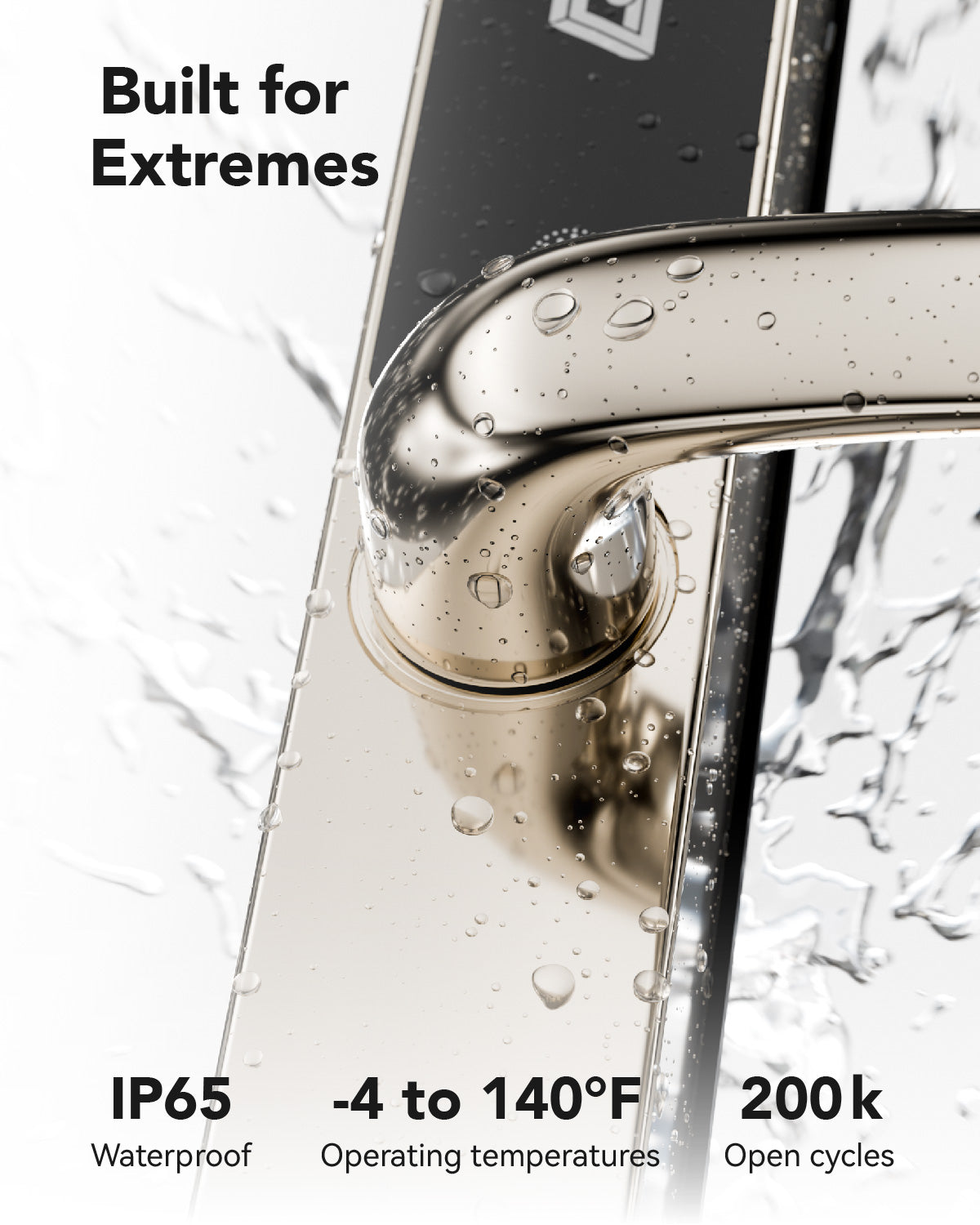

The BS lock has an IP65 waterproof rating. However, to ensure sensitive reading, please keep your fingers and the fingerprint sensor dry when using it.

50 fingerprints.
